The Flip Industrial Wall.

Simple to build and can be built by one person.

All designed to so they cannot be removed from the outside but easily removeanble from inside if access is needed.

Constructed from standard 25 x 15mm framed mesh panels, fitted with 3.5mm mesh that fit in to formed U section uprights fitted with bolted feet that stabilize the structure. Supplied with a range of standard door types complete with frames and locks.

Standard colour Blue RAL 7015 uprights and U section and RAL 7035 light grey mesh panels and doors

5 Panels types

U profile for top of industrial wall 3m lengths

Stablizer upright support for long runs (1 per 4 panels) 1750mm high

Wall fixing U channel 2200, 2400 and 3000 lenght

• Mesh panel (50 x 50 x 3,5mm) welded and pressed on frames

• Steel panel(0.8mm steelsheet)
• Plexiglass panel (4mm-transparent)
• Steel/mesh(0.8mm steelsheet and mesh 50x 50 x 3.5mm)
• Plain or White melamine 19mm board.

Sizes

150, 750, 1000, 1200 and 1500 long x 2200, 2400 and 3000mm high

2 Uprights types

Fitted with welded feet and fixings

• Upright
• corner

2 Door types key locking

• Leaf  left and right closing. Sizes1000, 1200 and 1500 long  x 2200, 3000 high

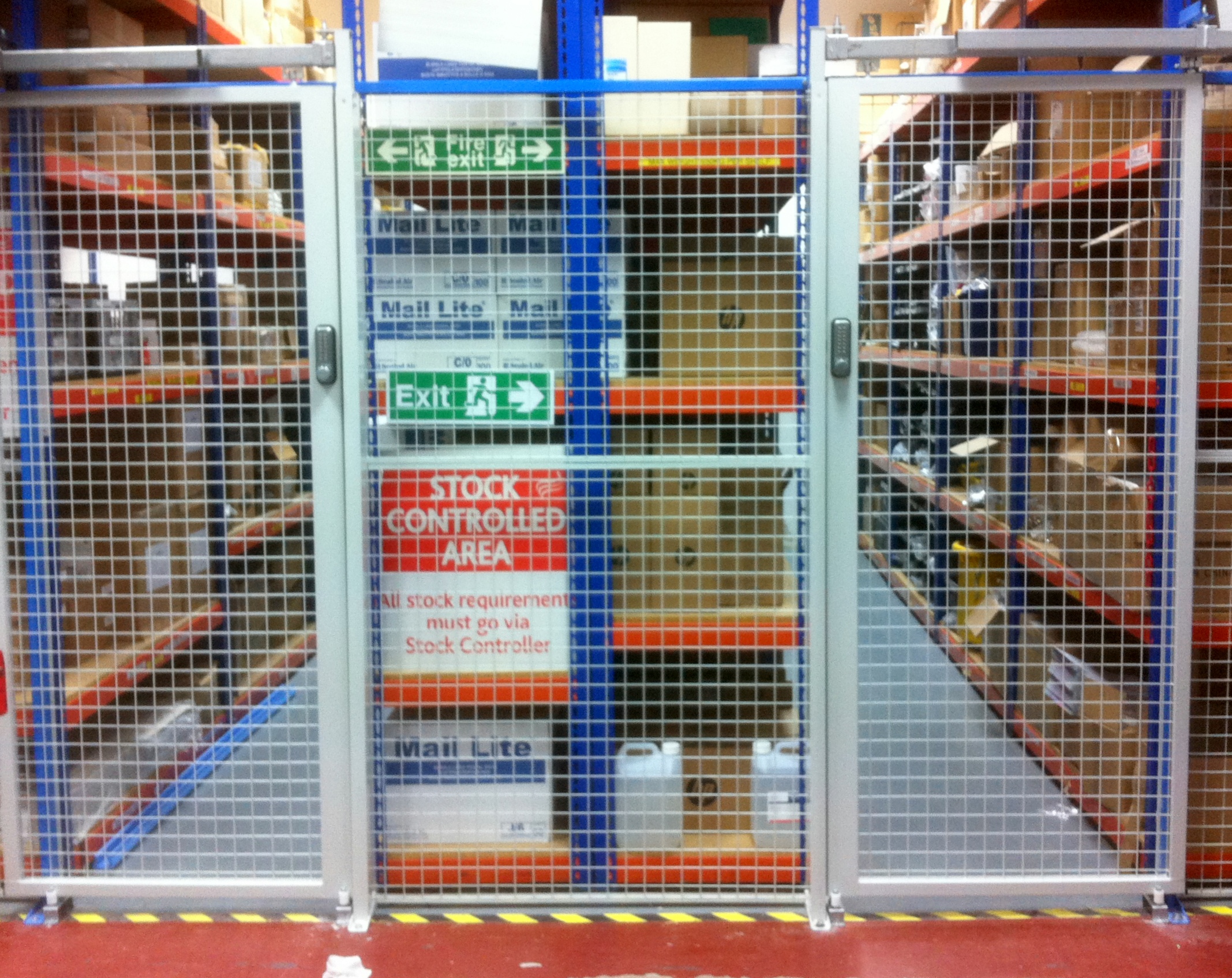

• Sliding left and right closing. Sizes 1000, 1200, 1500, 2000, 2400 and 3000 long x 2200, 3000 high.Made of 1 or 2 panels.

Special door sizes

• anti-panic locks
• digital locks availble

Other accessories

• Mesh hatch,
• mesh roof,
• cut outs for pipes
